SmartClient 14.0: Relation Fields and Shuttle Interface

SmartClient 14.0 fully automates the display, editing, and update of data relationships – including one-to-many, many-to-one, and many-to-many. You simply declare the relationship in your DataSource, and SmartClient does the rest. No coding required.

This capability is powered by three major features: Relation Fields, MultiPickerItem, and the Shuttle Interface. Together, they provide a declarative, scalable, and user-friendly approach to managing relational data.

Relation Fields

In both databases and object-oriented systems, a relation connects an object to one or more other objects. A classic example is an order with multiple line items (1-to-many). More complex are many-to-many relationships, like students enrolled in multiple courses, with each course having multiple students.

Describing these relationships is simple. Managing them, especially with large datasets and edge cases, is not.

Relation Fields make it easy. By declaring the relation in your DataSource, you get a virtual field that provides full read/write access to related data, without extra coding.

<field
    name="EmployeeId"
    title="Employee"
    displayField="EmployeeName"
    foreignDisplayField="Name"
    foreignKey="teamMembers_relation.employees_relation.EmployeeId"
    multiple="true"
/>
<field
    name="EmployeeName"
    hidden="true"
    includeFrom="employees_relation.Name"
    multiple="true"
/>

This setup connects teams to employees (another Many-to-Many relation) and handles everything from value resolution to text display with no additional logic.

Key Features

• Declarative configuration: Just declare a field as a relation to another DataSource. Whether your backend is SQL, JPA, REST, or anything else, SmartClient automatically handles all data retrieval and update operations.

• Instant, Codeless UI: Bind a grid or form to a DataSource with Relation Fields, and SmartClient instantly renders UI controls for viewing and editing those relationships, no additional code needed.

See the Relation Field showcase for live examples.

Editing Related Records: Shuttle Interface and MultiPickerItem

To complement Relation Fields, SmartClient 14.0 introduces two powerful UI components for managing many-to-many relationships: the Shuttle Interface and MultiPickerItem. Each is designed for different usage contexts, one for inline form editing, the other for full dual-grid interaction.

MultiPickerItem

MultiPickerItem is a compact UI control for selecting multiple related records. It’s automatically used in forms when a field has a multi-valued foreignKey and requires no manual configuration. It provides an intuitive UX for choosing related records. That includes displaying selected values as a comma-separated list and opening a pop-up list for editing selections using checkboxes.

In forms, MultiPickerItem is used automatically when the field has a multi-valued foreignKey. In editable grids, you can enable it by specifying:

editorType: "MultiPickerItem"

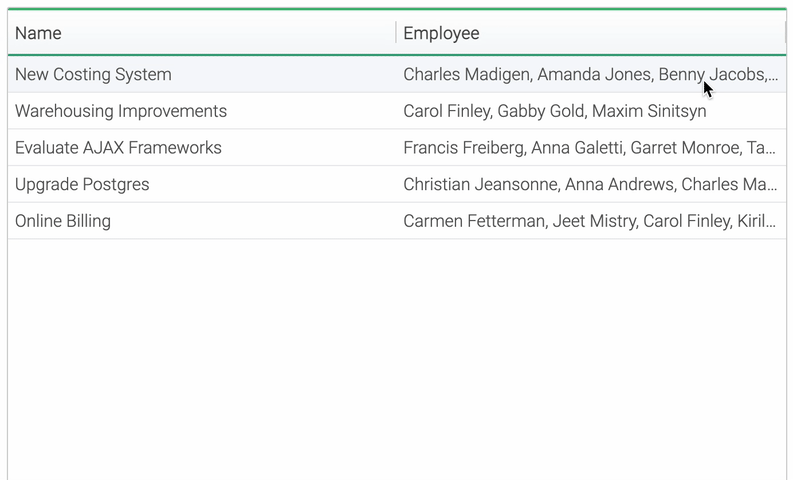

The example below shows MultiPickerItem in an editable grid. Selected values appear inline, and the pop-up allows users to select from a related DataSource using checkboxes.

Explore the MultiPicker Fields sample.

A related component, SetFilterItem, is used in search forms and filter UIs. It provides a simple, checkbox-based UI for selecting multiple filter values, and supports inclusion and exclusion operators such as “is one of” and “is not one of”. This makes it easy for users to define in-set or not-in-set filters without needing custom logic.

SetFilterItem is automatically shown when users choose these operators in a filtering context. It’s designed to help users define in-set or not-in-set criteria without needing to understand the data structure underneath.

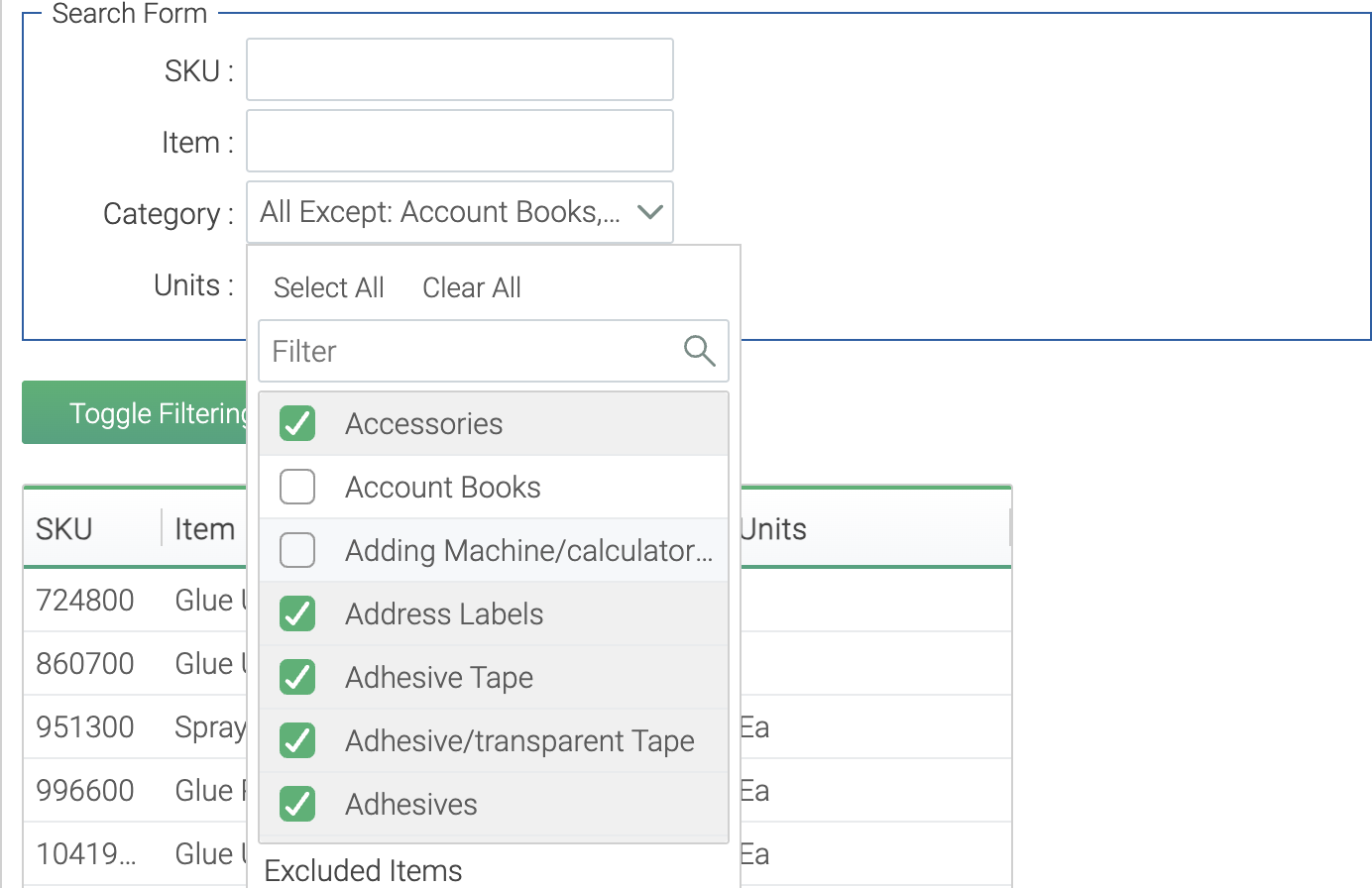

You can see this in action in the image below, where the Category field uses SetFilterItem to build filter criteria visually.

Explore the Set Filtering sample.

Shuttle Interface

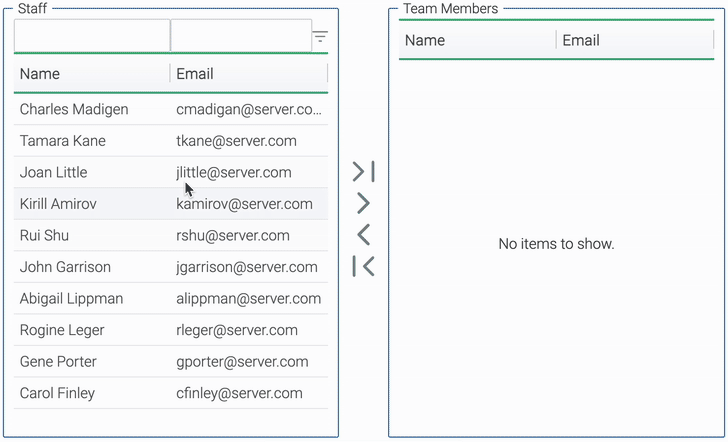

The Shuttle Interface is a full dual-grid control ideal for visual editing of many-to-many relationships. It displays all available records on the left and selected records on the right. Users can drag, double-click, or use arrow controls to move records between panels.

Unlike MultiPickerItem, Shuttle is a standalone component and can be embedded directly in forms, modals, or any layout.

Key Features

• Dual-panel interface: Users see all available items on the left and selected items on the right. They can move items between panels with a click, eliminating the need for dialogs or separate editing views.

• Inline and pop-up support: You can embed the Shuttle directly inline, in modals, or in forms, wherever a full visual editor is needed. This lets you adapt the component to your specific UX requirements.

• Automatic binding with relation fields: When used with Relation Fields, the Shuttle Interface binds automatically. You define the relationship, and SmartClient handles the rest, including data loading, UI generation, and value updates.

The Shuttle Interface is perfect for assigning users to teams, allocating resources to projects, or managing memberships in complex systems. It gives users a simple, fast way to handle multi-item associations without needing to understand database joins or linking tables.

Check out the Shuttle Interface showcase to see it in action.

Conclusion

SmartClient 14.0 removes the pain of managing relational data. With Relation Fields, you can define complex relationships declaratively and instantly present them using powerful UI components like MultiPickerItem and the Shuttle Interface, all without writing a single line of code.

Whether you’re editing linked records, managing membership lists, or working with nested relationships, SmartClient 14.0 delivers the tools to handle it all with minimal setup and maximum efficiency.
